    :: Products ::



Fabricators Of : Chemical Tanks, Vertical And Horizontal Spiral Tanks, Rectangular tanks, Ventures, Conical Bottom Tanks.




WHAT IS SPIRAL TANK ?

A popular name is both Europe and USA, Spiral tanks have also been available for the past two decades in India. Developed and patented by BAUKU of Germany, the tanks are manufactured by a unique process known as Spiral winding.

The spiral tank process involves extruding a special engineering grade of High Density Polyethylene (HDPE) and Poly propylene (PP) in to a strip and then winding it spirally and continuously over a rotating mandrel to form a homogenous, seamless shell..

The fabricated tanks in HDPE/ P.P. are also available in wide ranges, shapes & sizes in vertical, horizontal and rectangular to suit our customer's requirements.

In India, the process has been followed by M/s. Heliplastics Ltd. & M/s. Kunstoffe Industries Ltd., Daman in technical collaboration with M/S. Bauku of Germany. M/s. Heliplastics Ltd. has closed their activities. M/s. Kunstoffe Industries Ltd. has appointed various authorized fabricators to manufacture the tanks, reaction vessels, scrubbers, Nutch filters & similar custom made articles of plastics out of the shell and sleeves manufactured by them. We are one of them.

VERTICAL AND HORIZONTAL SPIRAL TANKS

Ranging in diameter from 300 mm to 3000 mm (standard Internal diameters 300, 400, 500, 600, 800, 900, 1000, 1200, 1600, 2000, 2400, 3000 mm) with a storage capacity from 0.5 KL to 40 KL. Rectangular and Square tanks also available in range of sizes.

RECTANGULAR TANKS

Available in range of sizes. Recommended to be used with suitable M.S. Structure





Our Product Range

Top



Rectangular Tanks

HDPE Pipe Line

HDPE Pipe Line

Sulfuric Acid Storage Tank

Sulfuric Acid Storage Tank

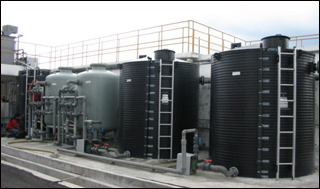

Hydrochloric Acid Storage Tank

Hydrochloric Acid Storage Tank

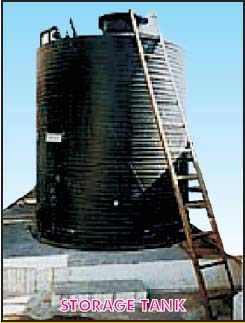

Storage Tank

HCL Storage Tank

HCL Storage Tank



    Top

1) Vertical Tanks

Ranging in diameters from 300 m_ to 3000 mm and with a storage capacity upto 40,000 liters.

Vertical Storage Tank


    Top

2) Ventures

Available in diameters ranging from 300 mm to 2000 mm.

    Scrubber System


    Top

3) Horizontal Tanks

Available in diameters ranging from 300 mm to 3000 mm along with M.S. supports.

Horizontal Tanks


    Top

4) Rectangular Tanks

Available in a range of sizes. Suitably reinforced with a mild steel frame.

Rectangular Tanks


    Top

5) Conical Bottom Tanks / Reaction Vessel

Ideal for effluent treatment & reaction where settling tanks are needed.

Conical Bottom Tanks / Reaction Vessel



    Top
  Our range also includes : -

* Scrubbers * Absorption Towers * Tank systems for effluent treatment * Process vessels with stirrers, agitators and jackets * Acid proof liners * Ducts * Ventures.





10 REASONS
WHY SPIRAL TANK IS A BETTER ALTERNATIVE :


    Top


1) Immune to corrosion :-
With a high corrosion resistance, Spiral Tank is inert to most chemicals and immune to electrolytic attack, It needs no extra expensive lining.

2) High impact strength :-
Because Spiral Tank is extruded and is spirally wound continuously to give a homogenous construction, it has no seams that could crack under stress. What is more it can withstand an extreme temperature range of -4O0C to + 800C (HDPE) and +110°C (PP)

3) Easy to maintain :-
Tough and non-corroding Spiral Tank does not need painting or anti-corrosive treatment. It is resistant to ultra-violet radiation of sunlight and can be safely installed out-door.

4) Leak proof :-
Because of its homogenous structure Spiral Tank is completely leak proof thus minimizing production losses due to shut down.

5) Abrasion resistant :-
Tough and durable, Spiral Tank has very high resistance to abrasion and is ideal for handling slurries and pastes.

6) Hygienic :-
Non-toxic and non-absorbent, Spiral Tank does not impart any taste or odour. Its smooth walled inner surface is easy to clean and does not promote growth of bacteria. This makes it ideal for pharmaceutical and food industries.

7) Light weight :-
Incredibly light Spiral Tank and system is easy to handle; consequently the installation cost is also low.

8) Accessories :-
All accessories - flanged inlets and outlets, valves, sight glasses, float valves, collars, manhole covers etc. can be provided as per your specifications.

9) Custom built :-
Spiral! Tank is custom-built for you in a wide range of sizes upto a storage capacity of 40,000 liters.

10) Long lasting :-
Durable and with a high-impact strength, Spiral Tank has a long trouble free life.


    Top
  Comparative Weights ( Specific gravity )


Material : 1 2 3 4 5 6 7 8 9 10 11
1.  HDPE (GM 5010 )
2.  Mild Steel
3.  Stainless Steel
4.  Wood

5.  F R P
6.  Rubber-lined Steel
7.  Lead
