WHAT IS SPIRAL
TANK ?
A popular name is both Europe and USA, Spiral
tanks have also been available for the past two decades in India. Developed and
patented by BAUKU of Germany, the tanks are manufactured by a unique process
known as Spiral winding.
The spiral tank process involves extruding a
special engineering grade of High Density Polyethylene (HDPE) and Poly propylene
(PP) in to a strip and then winding it spirally and continuously over a rotating
mandrel to form a homogenous, seamless shell..
The fabricated tanks in HDPE/ P.P. are also available in wide ranges, shapes & sizes in vertical, horizontal and rectangular to suit our customer's requirements.
In India, the process has been followed by M/s. Heliplastics Ltd. & M/s.
Kunstoffe Industries Ltd., Daman in technical collaboration with M/S. Bauku of Germany. M/s. Heliplastics Ltd. has closed their activities. M/s. Kunstoffe Industries Ltd. has appointed various authorized fabricators to manufacture the tanks, reaction vessels, scrubbers, Nutch filters & similar custom made articles of plastics out of the shell and sleeves manufactured by them. We are one of them.

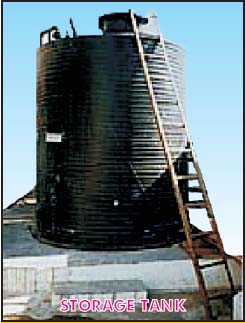

VERTICAL
AND HORIZONTAL SPIRAL
TANKS
Ranging in diameter from 300 mm to 3000 mm (standard Internal diameters 300, 400, 500, 600, 800, 900, 1000, 1200, 1600, 2000, 2400, 3000 mm) with a storage capacity from 0.5 KL to 40 KL. Rectangular and Square tanks also available in range of sizes.
RECTANGULAR
TANKS
Available in range of sizes. Recommended to be used with suitable M.S.
Structure.
Our
Product Range
1) Vertical Tanks
Ranging in diameters from 300 m_ to 3000 mm and with a storage capacity upto
40,000 liters.
|
 |
2) Ventures
Available in diameters ranging from 300 mm to 2000 mm. |
|
2) Horizontal Tanks
Available in diameters ranging from 300 mm to 3000 mm along with
M.S. supports.
|
 |
3) Rectangular Tanks
Available in a range of sizes. Suitably reinforced with a mild steel frame. |
 |
4) Conical Bottom Tanks
Ideal for effluent treatment & reaction where settling tanks are needed. |
|
|
Our range also includes
* Scrubbers * Absorption Towers * Tank systems for effluent treatment *
Process vessels
with stirrers, agitators and jackets * Acid proof liners * Ducts * Ventures.
|
10 REASONS
WHY SPIRAL TANK IS A BETTER ALTERNATIVE : |
1} Immune to corrosion
With a high corrosion resistance, Spiral Tank is inert to most chemicals and
immune to electrolytic attack, It needs no extra expensive lining.
2} High impact strength
Because Spiral Tank is extruded and is spirally wound continuously to give a
homogenous construction, it has no seams that could crack under stress. What is
more it can withstand an extreme temperature range of -4O0C to + 800C
(HDPE) and +110°C (PP)
3} Easy to maintain
Tough and non-corroding Spiral Tank does not need painting or anti-corrosive
treatment. It is resistant to ultra-violet radiation of sunlight and can be
safely installed out-door.
4} Leak proof
Because of its homogenous structure Spiral Tank is completely leak proof thus minimizing
production losses due to shut down.
5} Abrasion resistant
Tough and durable, Spiral Tank has very high resistance to abrasion and is
ideal for handling slurries and pastes.
6} Hygienic
Non-toxic and non-absorbent, Spiral Tank does not impart any taste or
odour.
Its smooth walled inner surface is easy to clean and does not promote growth of
bacteria. This makes it ideal for pharmaceutical and food industries.
7} Light weight
Incredibly light Spiral Tank and system is easy to handle; consequently the
installation cost is also low.
8} Accessories
All accessories - flanged inlets and outlets, valves, sight glasses, float
valves, collars, manhole covers etc. can be provided as per your specifications.
9} Custom built
Spiral! Tank is custom-built for you in a wide range of sizes upto a storage
capacity of 40,000 liters.
10} Long lasting
Durable and with a high-impact strength, Spiral
Tank has a long trouble
free life. |
|
Comparative
Weights ( Specific gravity ) |
|
